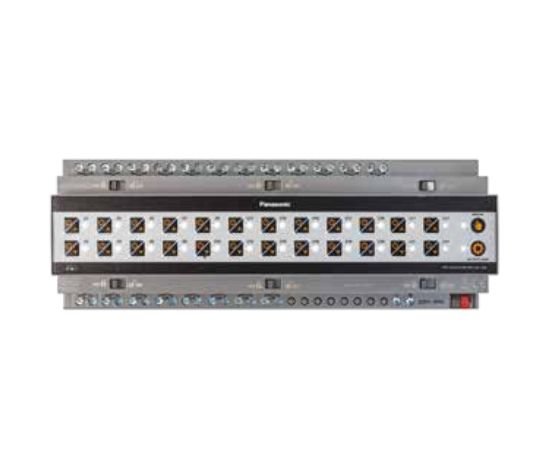

KNX MIX ACTUATOR MX124-16A

• 4 – 8 – 12 – 16 – 20 – 24 gang options
• 220V AC - 16A relay and independent manual control button in each channel
• Visual control with Status LED
• High inrush current strength (16A with high-inrush current capacity)
• 8 independent scene integration for each channel
• Advanced processing and function capacity
• Status settings such as KNX bus line and power failure - back
• Below functions can be configured:
• Switching Actuator, Heating Actuator, Shutter / Blind Actuator (230V AC, 12…48V DC), Fan Coil Actuator (2 Pipe, 4 Pipe), Logic Controller, Converter, Sequence Controller

Switching

The switching mode is used for switching lighting devices.

The output is controlled by using time, logic and safety functions.

Heating

Heating mode uses 1 output channel. It basically controls valve which controls hot

water fluid in pipes. The configuration of heating option helps energy consumption.

Shutter/Blind

Shutter\Blind may be employed for a variety of reasons, including controlling the

amount of sunlight that enters a room, to provide privacy, security, to protect against weather or unwanted intrusion or damage and to enhance the aesthetics of a building.

There are two different functionality such as “shutter” and “blind”. These options have

same capabilities. “Blind“ has some additional functionalities for slat usage.

Fan coil

A fan coil is a device basically consisting of one or two heat exchangers, one or

two control valves and a fan. It is part of an HVAC system connected to a central

heating and cooling water supply. The main aim is to heat, cool or ventilate a room

in residential, commercial, and industrial buildings.

Logic

You can use up to 4 logic operation function. In every logic operation

function you can use 4 different inputs. In logic function you can use

AND operation, OR operation and XOR operation.

Converter

You can use up to 4 different converter operations. Each operation has

its own objects. You have to select input type and value and the value which

you want to be converted to. There are 6 types for input and output.

Object type changes according to your selection.

Sequence

This function allows you to set a relation between selected objects.

You can select 1-Bit objects as well as 1-Byte objects. There are 4 different

sequence functions. Each sequence function has 1 input object and maximum

4 output objects. Number of output object is selectable.

Main highlights will be updated shortly.
